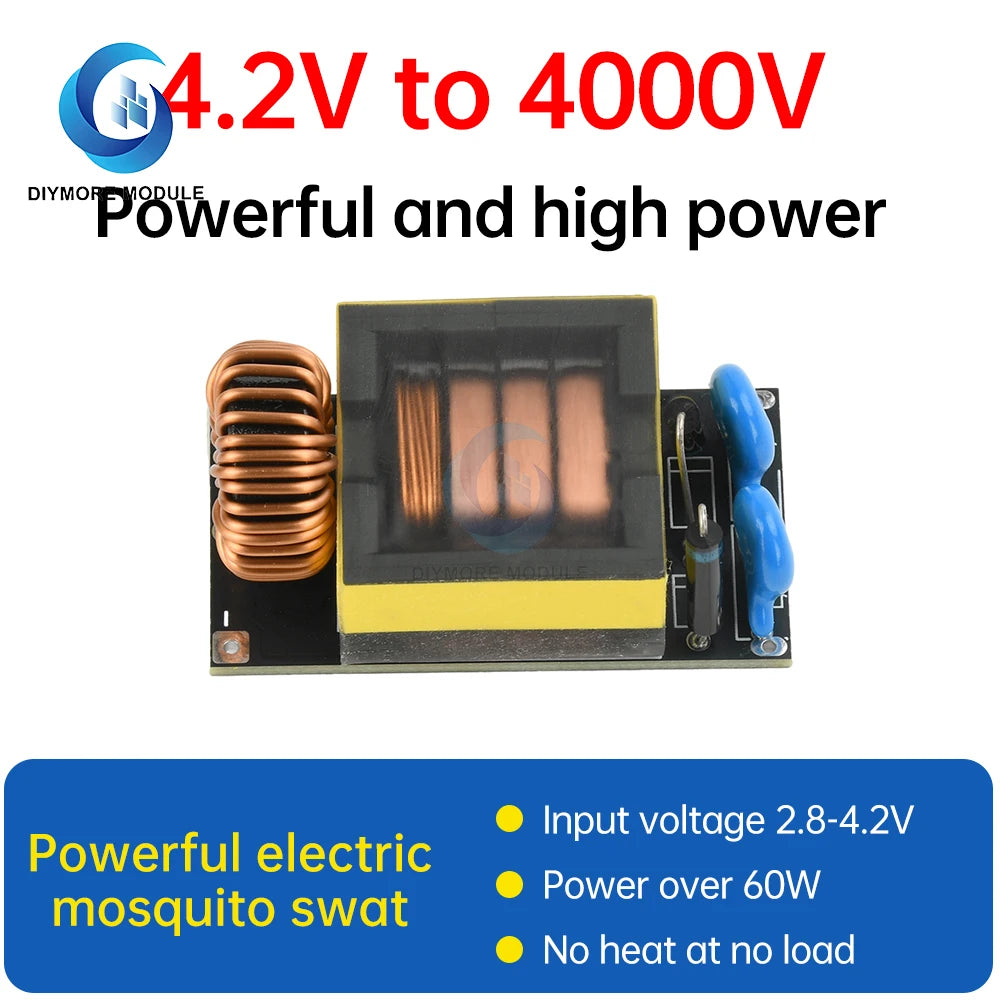

C 3.7V to 4KV High Voltage High-Power

Features:

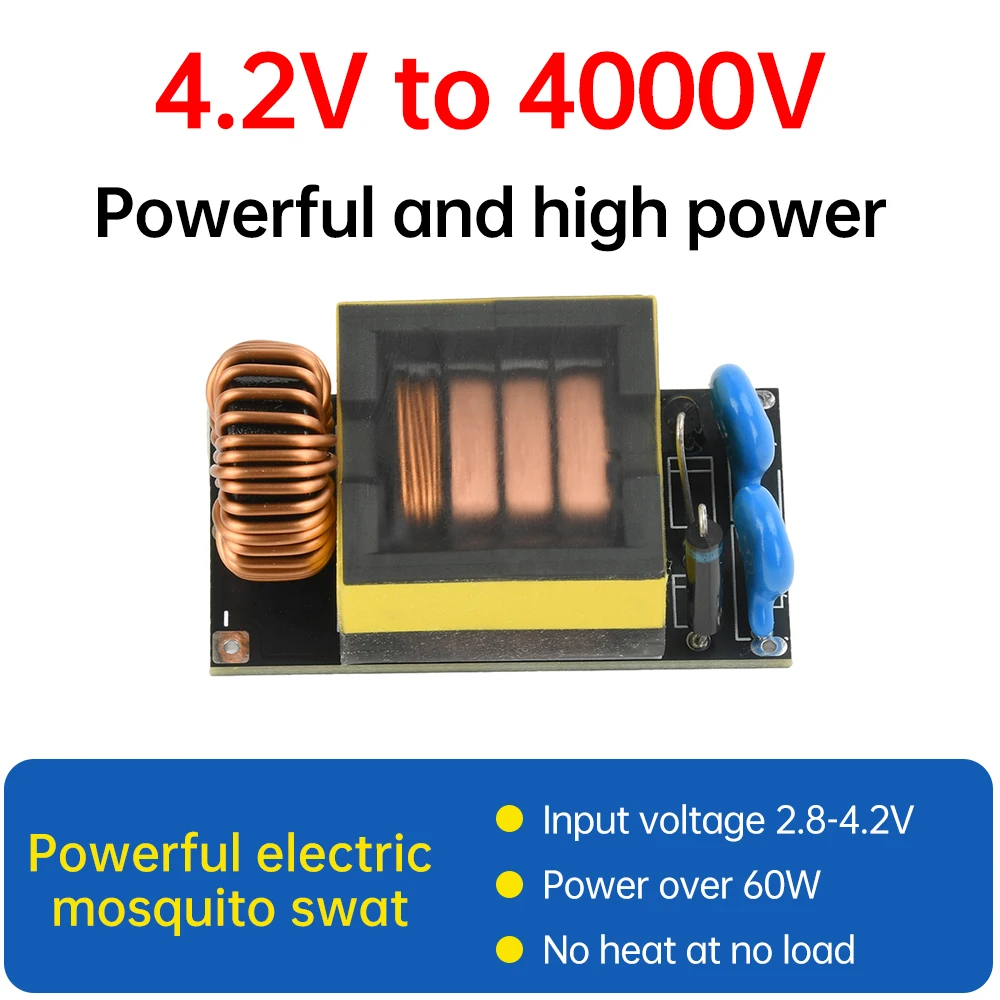

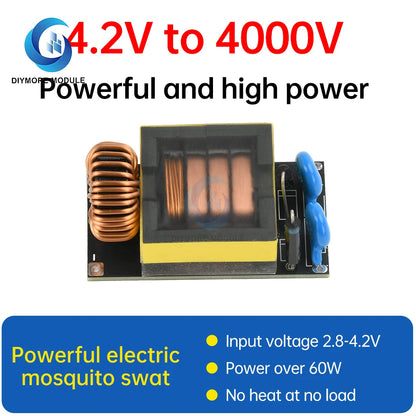

1.High-voltage boost module: DC 3.7V to 4000V, suitable for the transformation of powerful electric mosquito swatters
2.High-power design: maximum power up to 60W, to ensure efficient mosquito control, fast return to power
3.Low-power standby: standby current is less than 5mA, no-load current measured 150mA, energy-saving and power-saving
4.Overheating automatic protection: MOS tube overheating automatic protection to prevent damage and prolong service life
5.Short-circuit does not burn: with short-circuit protection, no-load heating, safe and reliable

Parameter:

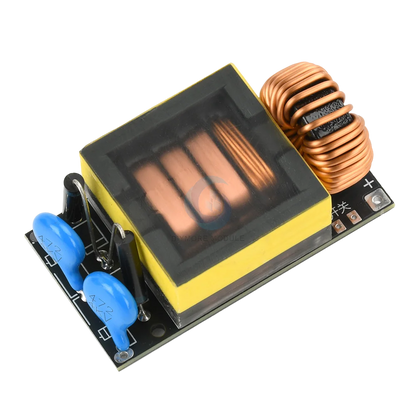

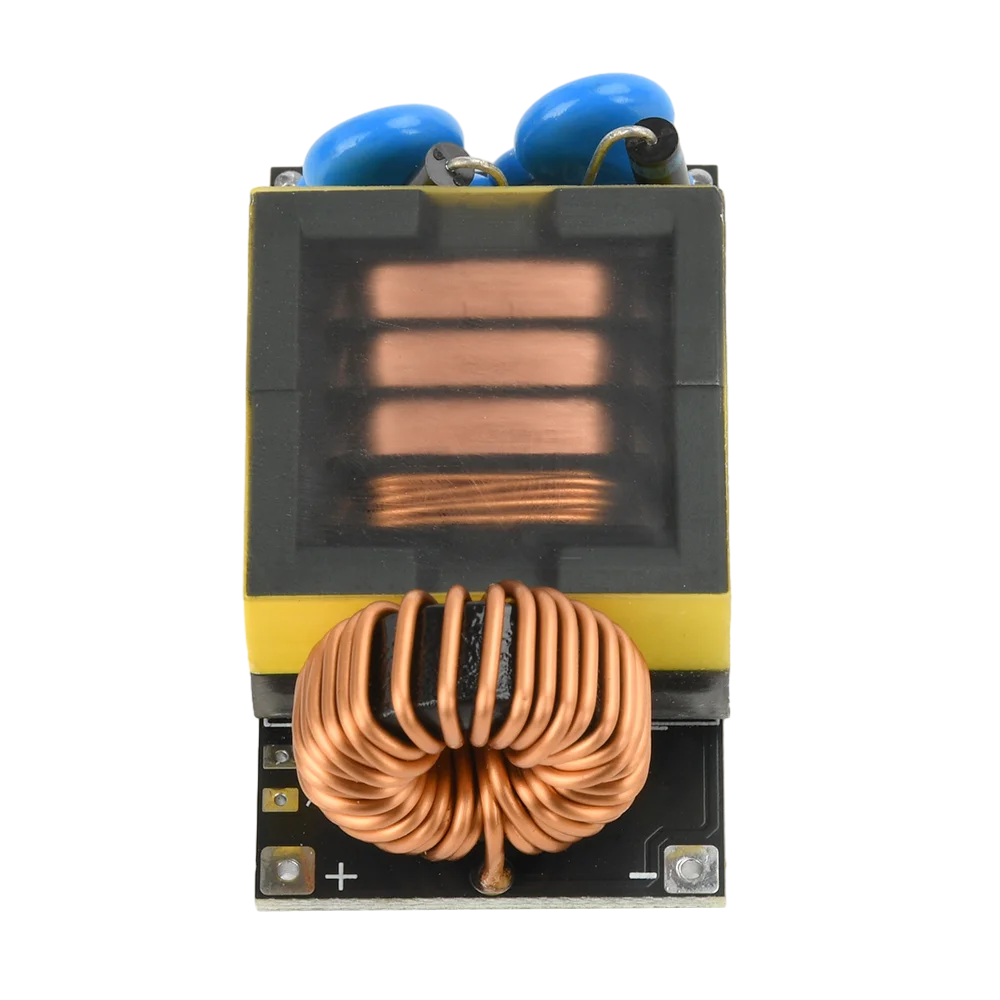

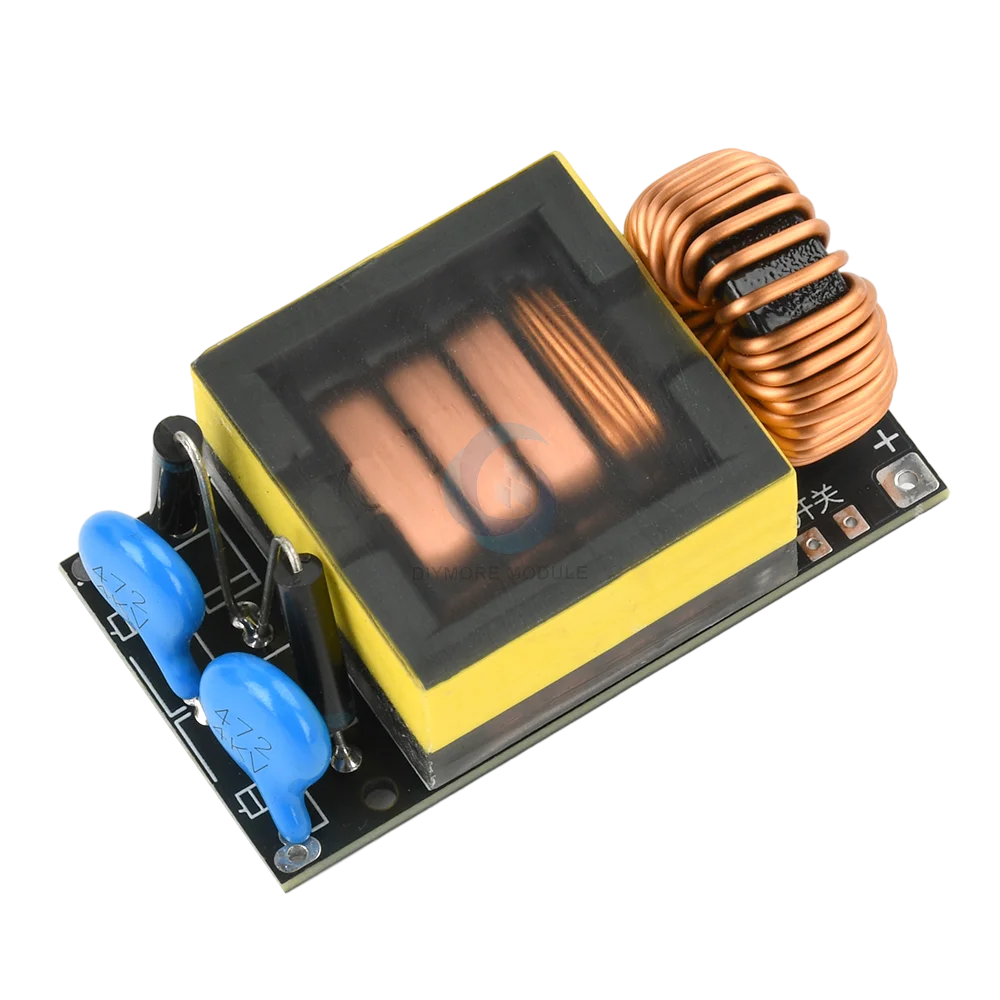

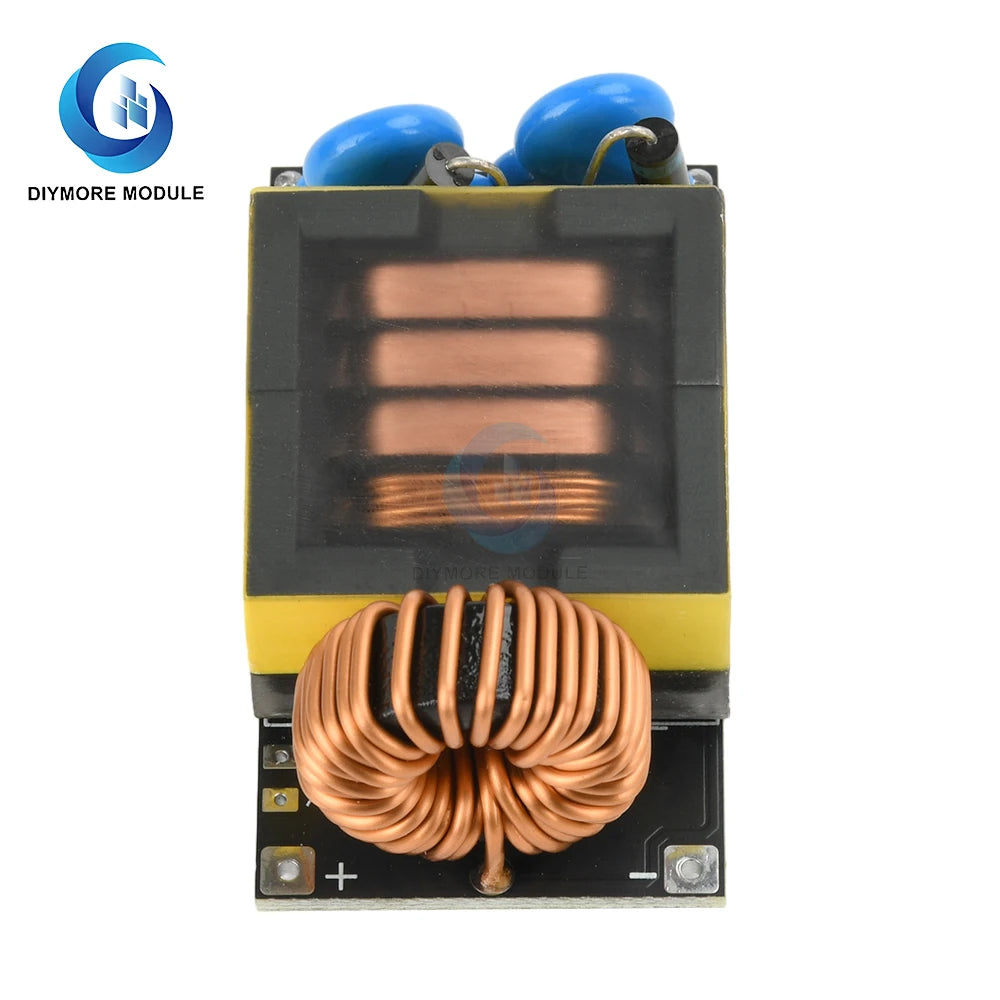

Product Name: High Power Booster Module
Supply voltage: DC 2.8-4.2V (single lithium battery power supply)
Input current: 20A (must use power lithium battery)
Maximum power: 60W
Output voltage: DC 4000V (4.2V power supply state, 3.3V power supply output voltage of about 3kV)
Standby current: less than 5mA (measured 3mA)
No-load current: less than 250mA (measured 4.2V state at 150mA)

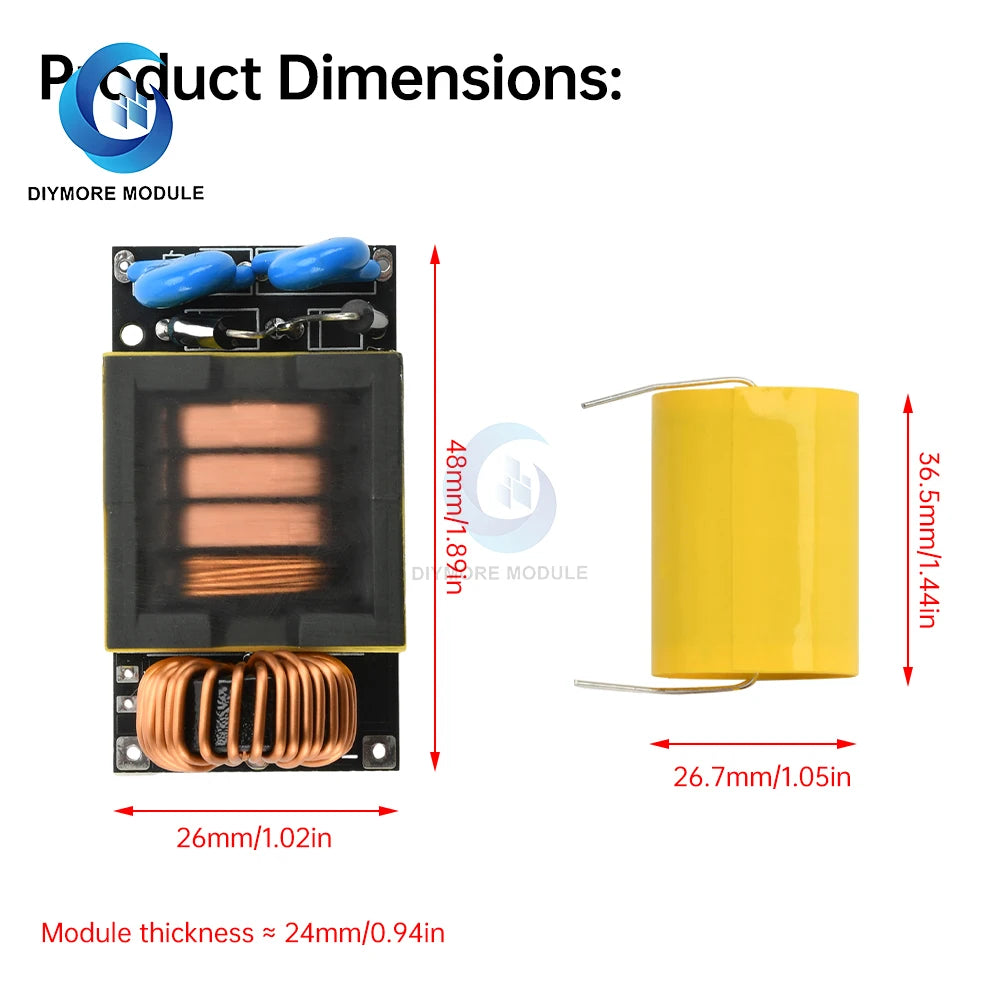

Product size: 48mmx26mm
Protection mechanism: MOS tube overheating automatic protection

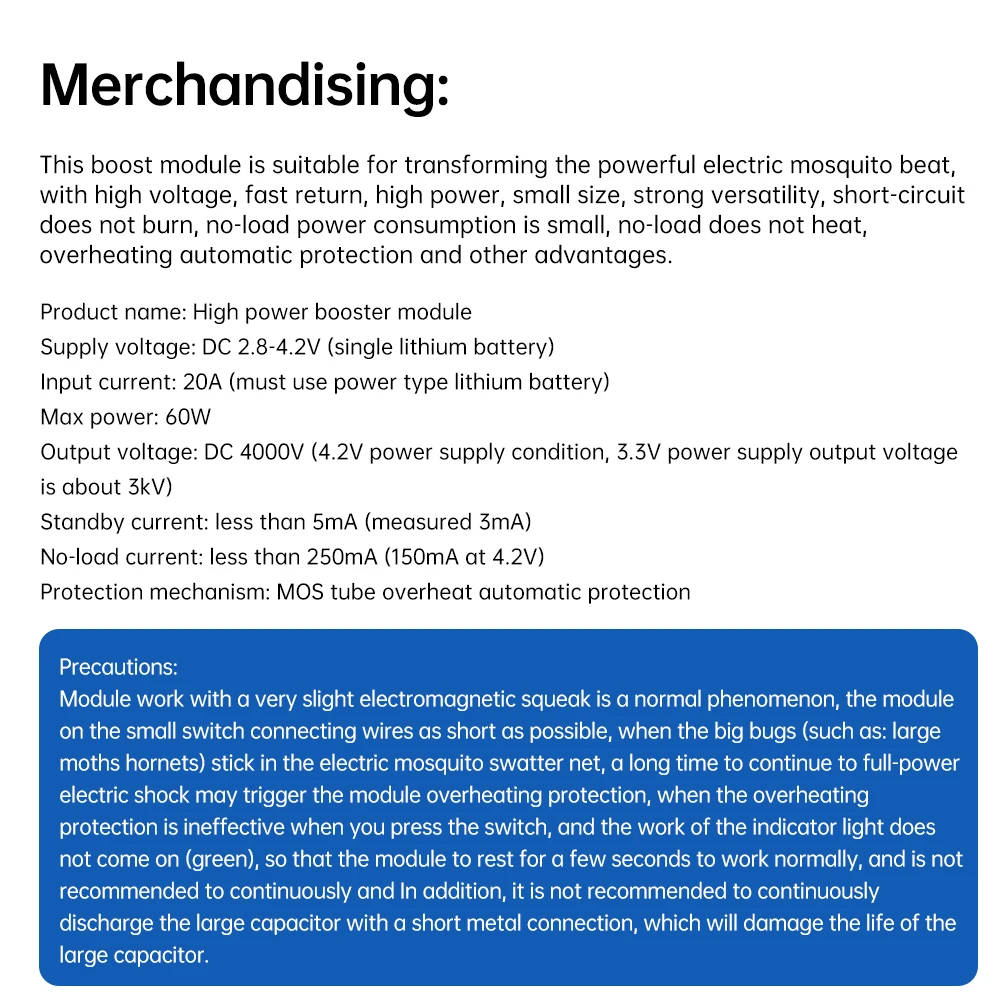

Description: This boost module is suitable for transforming the powerful electric mosquito beat, has the advantages of high voltage, fast return, high power, small size, strong versatility, short-circuit does not burn, no-load power consumption is small, no-load does not heat, overheating automatic protection.

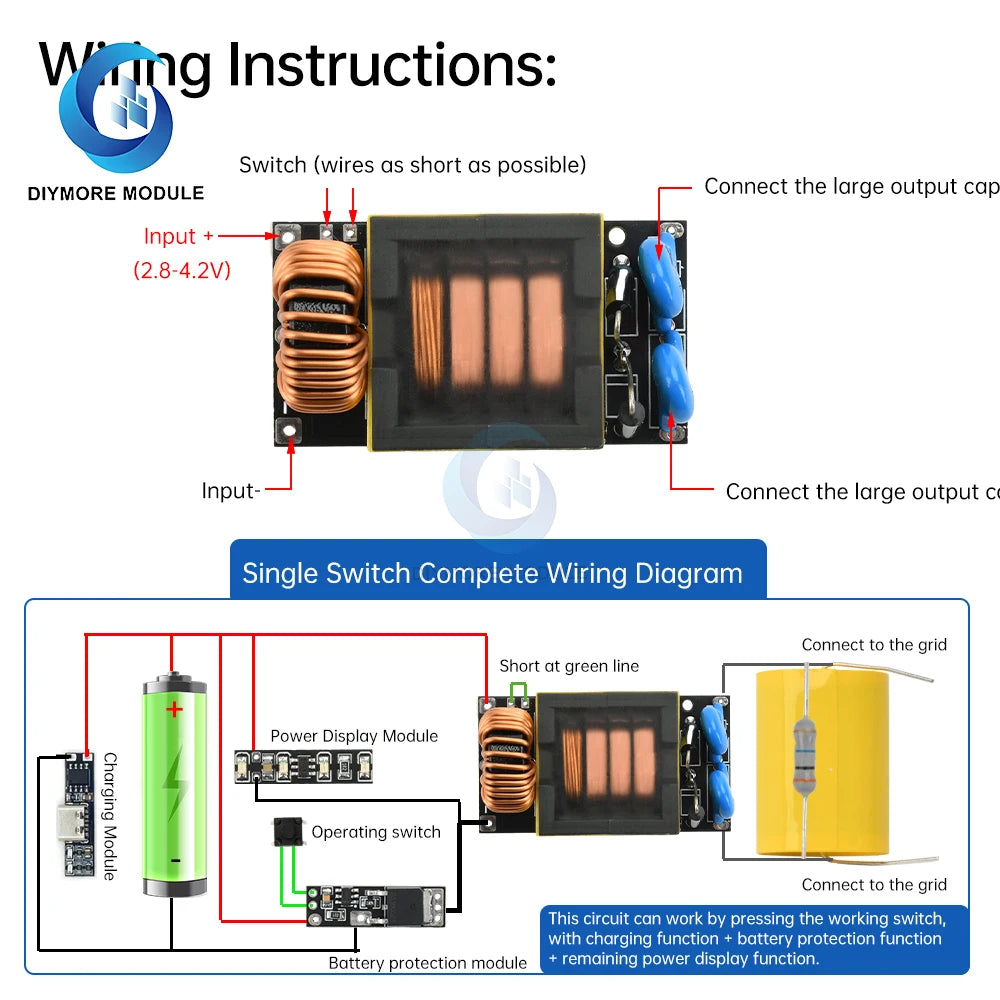

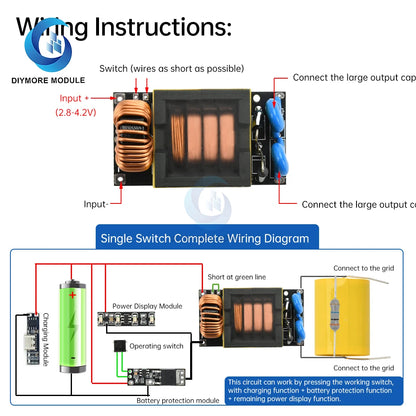

Note: Module work with a very slight electromagnetic squeak is a normal phenomenon, the module on the small switch connecting wires as short as possible, when the big bugs (such as: large moths hornets) sticking in the electric mosquito swatter network, a long period of time to continue to full-power electric shock may trigger the module overheating protection, when overheating protection is ineffective when you press the switch, and the work of the indicator light does not come on (green), so that the module to rest for a few seconds to work normally, and do not recommend continuous and continuous use of short metal, no-load power consumption, no-load automatic protection. It is not recommended to continuously discharge the large capacitor with a short metal connection, which will damage the life of the large capacitor.

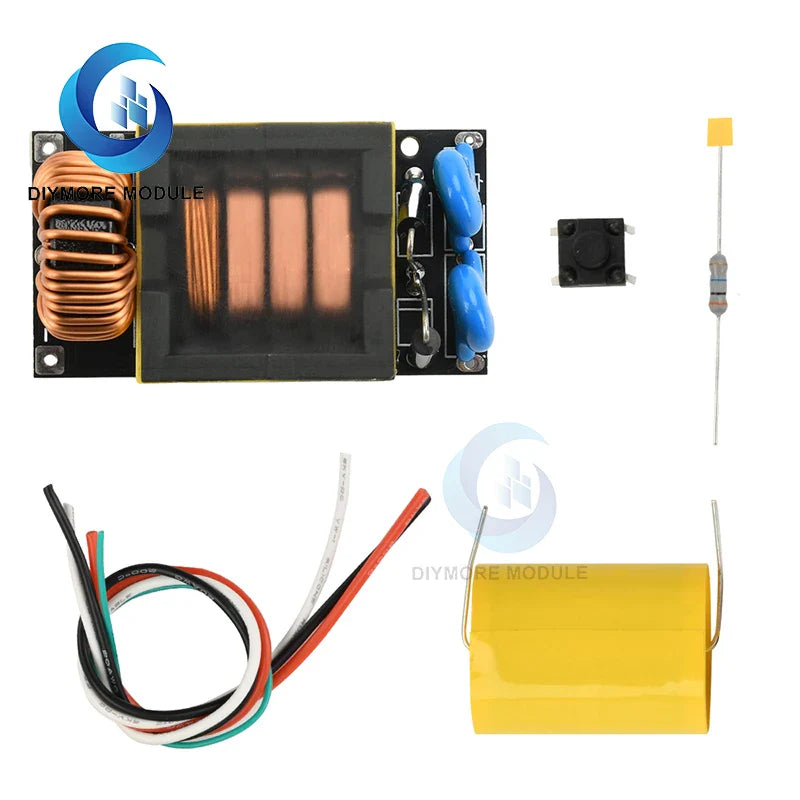

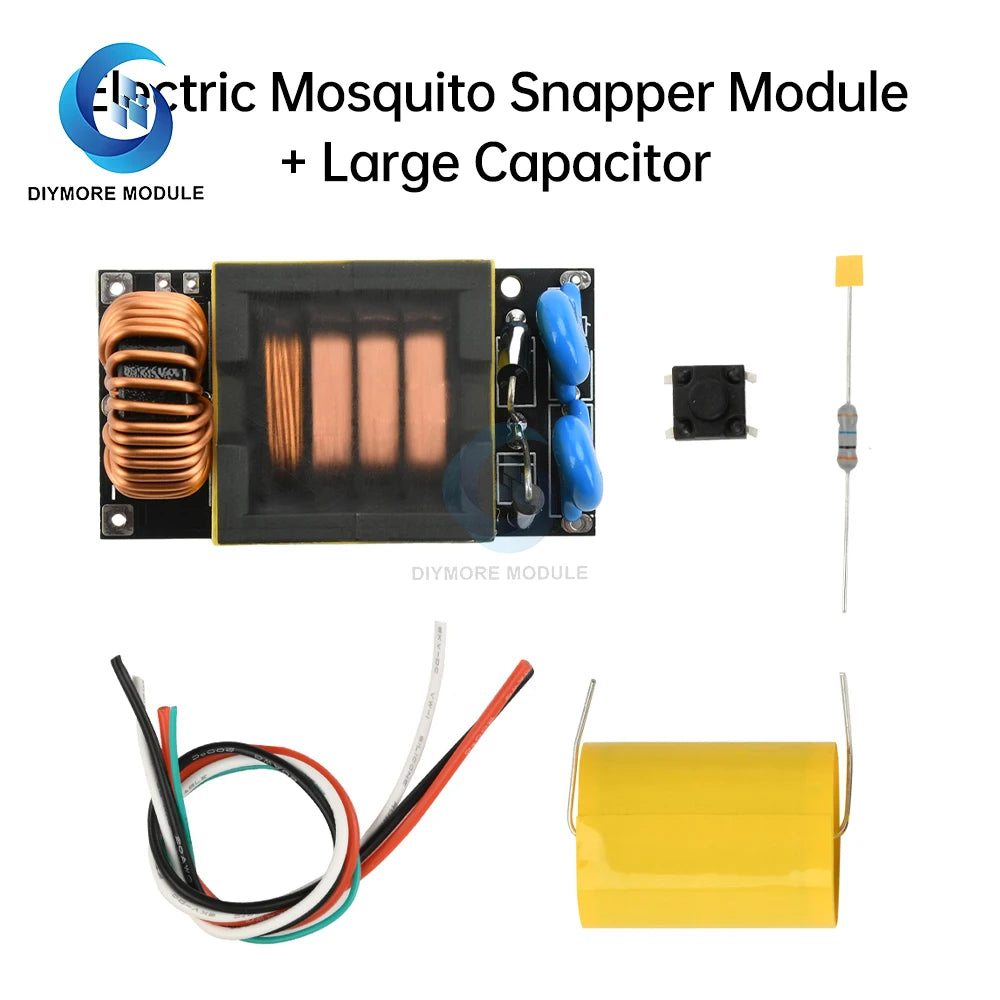

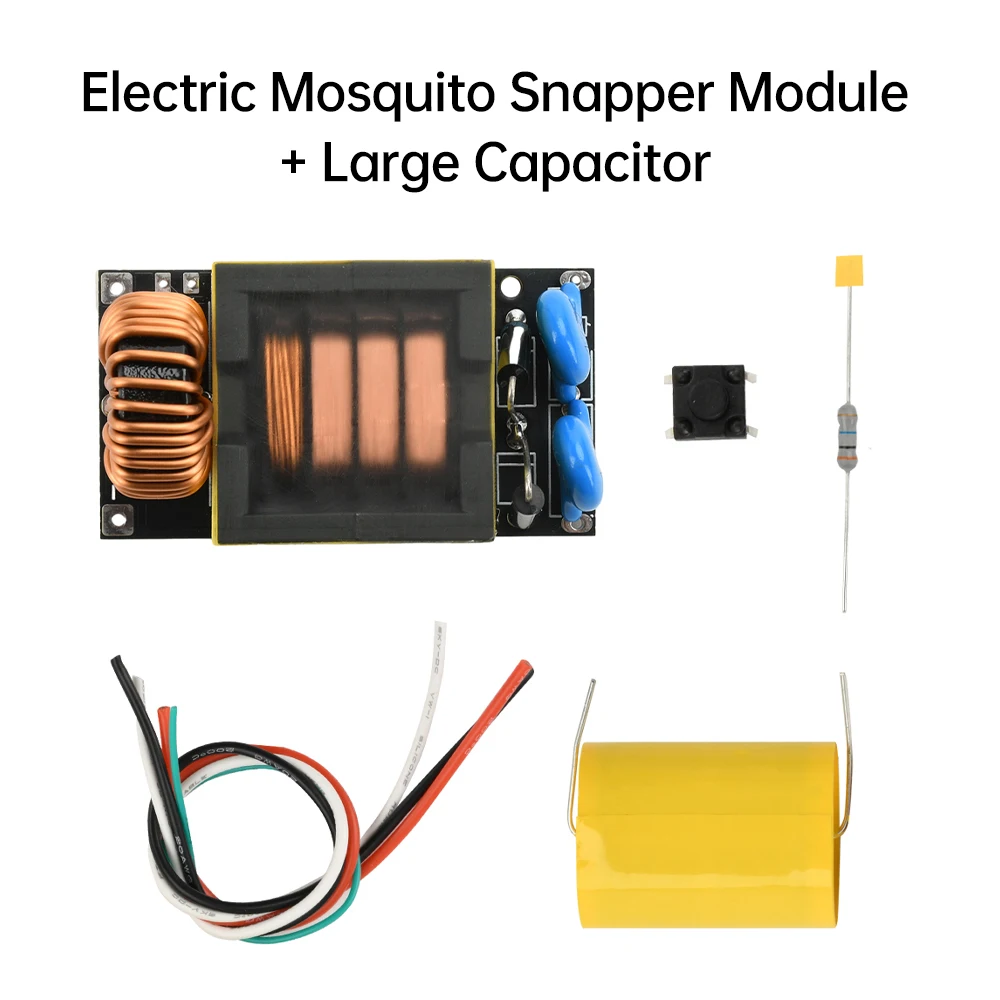

Package include:
Module x1
Large capacitor x1
Accessories x 1
